AiM Sports MXG 1.2 Large Color TFT Dash and Data Logger

Product Description
$2,899.00
Maximum quantity available reached.

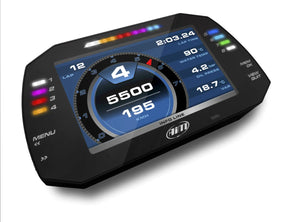

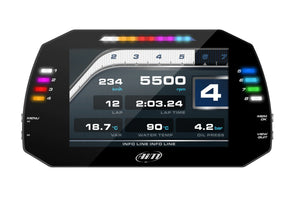

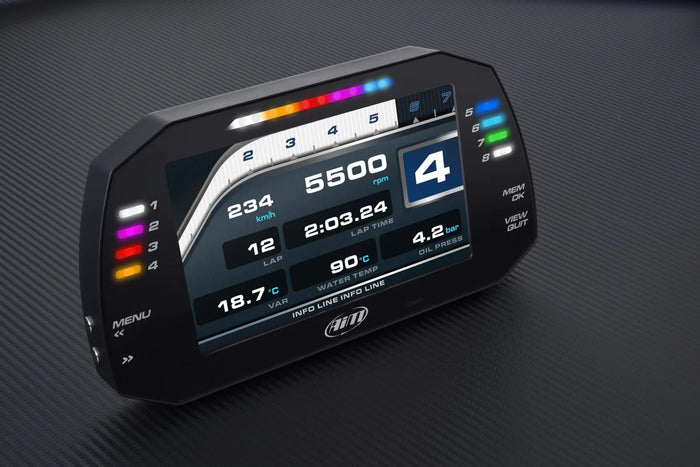

The AiM MXG 1.2 data-logging dash represents a huge leap forward in racing display flexibility. The brilliant 800x480 pixel, 7.0" color TFT display frees you from the constraints of a single, factory-designed dash display. The MXG shows you the data you want, the way you want in brilliant, high-contrast color.

The MXG 1.2 is a large, brilliant dashlogger designed to acquire and display data coming from your ECU, an internal accelerometer and gyro, the included GPS08 Module, analog/digital inputs and pre-defined math channels. Performance data acquired can be expanded by adding up to eight expansion modules (sold separately). The large 7" high-color display makes it perfect for installation in wider cockpits (like in touring and GT cars).

CONFIGURABLE PAGES

You can define all the custom pages you wish, choosing from a large library of page styles and colors, defining which data you want to see and where (including end of scale and units of measure). Swapping between pages is as easy as pushing one or two buttons!

INPUT/OUTPUT FLEXIBILITY

Eight fully configurable analog input channels can sample, log, and display a wide range of temperatures, pressures, and potentiometers (throttle position, steering wheel position, etc). CAN Inputs allow you to further expand the dash by adding an almost limitless number of AiM CAN Data Hubs (Part No. MC-329, sold separately). These hubs let you connect other inputs such as Lambda Controller (O2), SmartyCam, or even channel expansion hubs, without using any analog channels. A separate CAN Output allows you to send messages to the existing CAN network, adding to the vehicle system control possibilities!

The MXG 1.2 can also be connected to many different ECUs to log data gathered by each ECU. An internal three-axis accelerometer, gyroscope, and magnetometer; GPS08 input; four wheel-speed channels; lap time receiver input; and two digital outputs add up to a flexible, expandable data logger that can grow with you. It even has a screw-in port to add analog cameras used for back-up or rear view in visibility-challenged race cars!

ALARMS & SHIFT LIGHTS

Flexible alarms on the MXG 1.2 include six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

The integrated shift light array features a host of advanced multicolored RGB shift light patterns that can be customized as you like, including RPM max for each individual gear.

DIGITAL OUTPUTS

The MXG 1.2 features two digital outputs (low-side type, switch to ground) that can be configured to activate/deactivate external systems (switch on/off additional lights, cooling fan relays, fluid circulation pumps, etc.) based on those inputs.

MEMORY & WIFI CONNECTIVITY

The 4GB non-volatile memory can store hours of information for detailed analysis using AiM's latest Race Studio 3 software.  A secure 802.11 WiFi connection makes it even more convenient to configure, calibrate, and download your data wirelessly!  No more need to move your PC close to the vehicle, you can do it from your trailer or tow vehicle up to 60 yards away.

FEATURES & SPECS:

  • 9.3" x 5.0" x 1.0" Anodized Aluminum housing
  • Large 7.0" high-contrast color TFT display
  • 800x480 pixel screen resolution
  • Internal 4GB memory

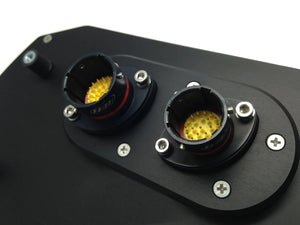

  • Two Motorsports and one Binder connector
  • Weight 2.1 lbs (950g)
  • Waterproof IP65

KIT INCLUDES:

  • MXG 1.2 data logging dash
  • GPS08 Module with cable
  • USB cable
  • Wiring harness with 37 pin Deutsch connector
  • Installation CD with Race Studio 3 software

All other sensors and modules sold separately.

      Vehicle Applications:

      • 1990-2005 Mazda Miata 1.6L NA6 & 1.8L NA8, NB1, & NB2
